DCS、PHS、PCS、GPS、WCDMA、UMTS >> Hanging on-wall antenna >> D1900G07B3

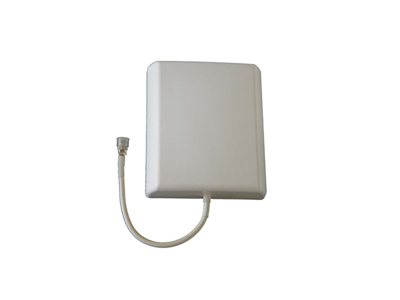

Model:D1900G07B3

Description of products：	Application: Radio telephony for high building. Characteristic: Small diameter construction and high gain for indoor . High gain minimizes possibility of intermod generation.Easy to installation and maintenance.
Main parameter：
	Frequency Range (MHz)		1880~1930
	Gain (dBi)		7.0
	Beam width	E-Plane	65°
		H-Plane	90°
	VSWR		<1.4
	Electrical down tilt		---
	Polarization		Vertical
	Max Power (W)		50
	Impedance (Ω)		50
	Lightning protection		Direct Ground
	Max wind velocity (km/h)		---
	Connector		N-50K
	DimensionsH×W×D (mm)		225×185×50
	Weight (kg)		0.9
	radiating element material		Copper
