Product

DCS、PHS、PCS、GPS、WCDMA、UMTS >> Hanging on-wall antenna >> D1825G07B3

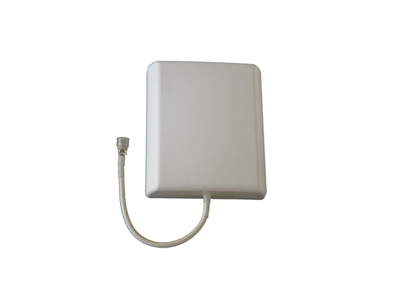

Model:D1825G07B3

Description of products：	Application: Microcellular configurations for celling mounting. Characteristic: Dimensions小，Gain高，适于室内信号分布 High gain minimizes possibility of intermod generation.Easy to installation and maintenance.
Main parameter:	Frequency Range (MHz)	1710～2500
	Gain (dBi)	7.0
	Beam Width(°)	72
	H-plane Beam width(°)	90
	VSWR	< 1.5
	Polarization方式	Vertical
	Max Power (W)	50
	Impedance (Ω)	50
	Connector	N-50K
	DimensionsH×W×D (mm)	170×158×60
	Weight (kg)	0.6
	radiating element material	Copper
	Temperature (℃)	-40～+70

Hitso1629 Input timeo2008-01-07 (Print) (back)
