DCS、PHS、PCS、GPS、WCDMA、UMTS >> Panel antenna >> D1900B1070Z

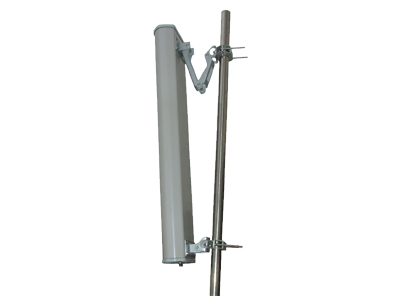

Model:D1900B1070Z

Description of products：	Application: Base station antenna and directional station antenna for PHS Characteristic: The capability is stable ,life span is long. Be adapted to all-weather work install prompt it still work reliably and steadily under adverse circumstance.
Main parameter：	Frequency Range (MHz)		1880～1930
	Gain (dBi)		10.0
	-3dBE-plane	E-Plane	45°
		H-Plane	70°
	F/B (dB)		≥25
	VSWR		<1.4
	Polarization		Vertical
	Power (W)		500
	Impedance		50
	Lightning protection		Direct Ground
	Connector		N-50K
	Mechanical down tilt		0～-30°
	Max wind velocity (Km/h)		240
	外形Dimensions(mm)		2280×160×60
	Weight (kg)		2.3
	Embrace the pole diameter(mm)		40～50
