DCS、PHS、PCS、GPS、WCDMA、UMTS >> Panel antenna >> D1900P1665Z

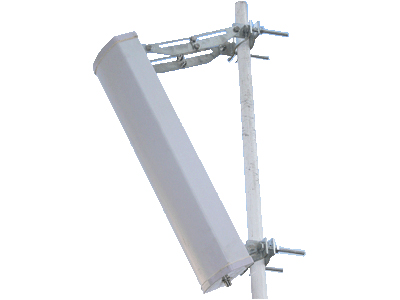

Model:D1900P1665Z

Description of products：	Application： Base station antenna and directional station antenna for PHS system. Characteristic： The capability is stable ,life span is long. Install prompt. Be adapted to all-weather work install prompt it still work reliably and steadily under adverse circumstance.
Main parameter：	Frequency Range (MHz)		1880～1930
	Gain (dBi)		15.5
	-3dBE-plane	E-Plane	15°
		H-Plane	65°
	Down tilt		0°
	F/B(dB)		≥25
	VSWR		<1.4
	Polarization		Vertical
	Power (W)		500
	Impedance		50
	Lightning protection		Direct Ground
	Connector		N-50K
	Mechanical down tilt		0～-15°
	Max wind velocity (Km/h)		240
	外形Dimensions (mm)		7700×160×60
	Weight (kg)		8.2
	Embrace the pole diameter (mm)		40～50
