DCS、PHS、PCS、GPS、WCDMA、UMTS >> Reflector antenna angle >> D1800J18F

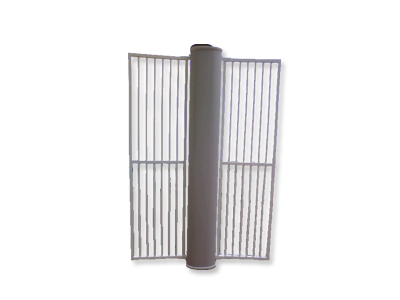

Model:D1800J18F

Description of products：	Application： base station antenna and directional station antenna for GSM/CDMA systems Characteristic： Super mechanical design, the high 40dB front to back ratio is maintained at all H-plane settings, excellent coverage and rape character, easy installation.
Main parameter：	Frequency Range (MHz)		1710~2170
	Gain (dBi)		4.0-18.0
	Beam width	E-Plane	16°
		H-Plane	30°-90°
	F/B (dB)		>35
	Polarization		Vertical
	Max Power (W)		200
	Impedance		50
	3rd order IMP (dBm)		< -107
	Lightning protection		Direct Ground
	Electrical down tilt		0°～15°
	Max wind velocity (Km/h)		240
	Connector		N-50K or 7/16-50K
	DimensionsH×W×D (mm)		600×160×60
	Weight (kg)		8.0
	Temperature (℃)		-40℃~+70℃
